Description

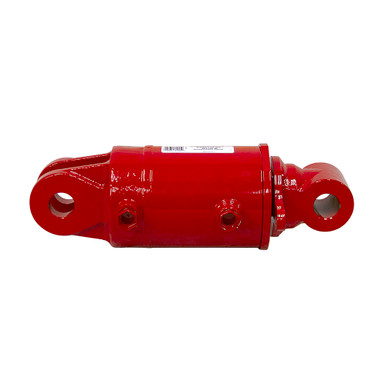

4.5″ x 2.5″ x 2″ HYD CYL
New. MONARCH INDUSTRIES 681145-M 45WD02.50-200, welded, double acting hydraulic cylinder. Plate welded on rod end has two 0.405″ holes on 7.5″ centers. SAE 6 port in base end clevis. Cylinder built to accept an internal hall effect position sensor to measure length of rod extension.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4.5″ x 2.5″
- Gland Retainer Threaded in
- Pressure 3000 PSI max.
- Rod Dia. 2″
|
- Ports SAE 8
- Retracted Length 12.75″
- Gland Face to Rod Pin Center 2.75″
- Shpg. 44 lbs.
|
| END MOUNTINGS |
|
- Rod End Cross-Tube
- O.D. 2.676″
- Width 2.743″
- Pin Hole 1.25″
|
- Base End Clevis
- Outside Width 2.75″
- Inside Width 1.235″
- Throat Depth 2.25″
- Pin Hole 1.25″
|
