4.5" x 33" x 2.5" Double Acting Hydraulic Cylinder 1454256M93

4.5″ x 33″ x 2.5″ Double Acting Hydraulic Cylinder 1454256M93

Original price was: $299.95.Current price is: $74.99.

SKU: 904880 Category:

Description

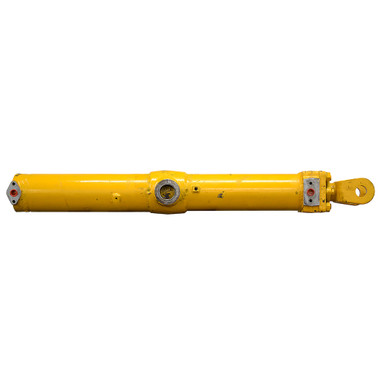

4.5″ x 33″ x 2.5” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1454256M93.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5″ x 33″
  • Barrel Thickness 0.307″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 2.5″
  • Ports Two M12-1.75 bolt holes on 2.365″ centers w/ 0.75″ port hole
  • Retracted Length 26.25″ (trunnion)
  • Gland Face to Rod Pin Center 5.5″
  • Shpg. 219 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 4.9″
  • Inside Width 3.18″
  • Throat Depth 3.86″
  • Pin Hole 1.58″(40mm)
  • Base End Female Trunnion
  • Pin Outside/Inside Width 8.25″ / 5.05″
  • Pin-Center-To-Rod Pin Center 26.25″
  • Pin Center To Base End 21.625″
  • Pin Hole 1.97″(50mm)
