4.71"(120mm) x 17.25"(438mm) x 2.95"(75mm) Double Acting Hydraulic Cylinder Terex 18-65014270 13T1102

4.71″(120mm) x 17.25″(438mm) x 2.95″(75mm) Double Acting Hydraulic Cylinder Terex 18-65014270 13T1102

Original price was: $229.95.Current price is: $57.49.

SKU: 904681 Category:

Description

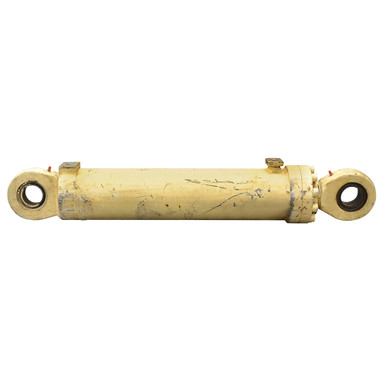

4.71″(120mm) x 17.25″(438mm) x 2.95″(75mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. TEREX numbers on cylinder 18-650142750 13T1102.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.71″(120mm) x 17.25″(438mm)
  • Barrel Thickness 0.594″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 2.95″(75mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 36.5″
  • Gland Face to Rod Pin Center 4″
  • Shpg. 248 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.2″
  • Pin-Center-To-Swivel Eye-End 2.9″
  • Swivel Eye Width 1.75″
  • Pin Hole 2.36″(60mm)
  • Base End Swivel Eye
  • Width 2.16″
  • Pin-Center-To-Swivel Eye-End 2.89″
  • Swivel Eye Width 1.75″
  • Pin Hole 2.36″(60mm)
