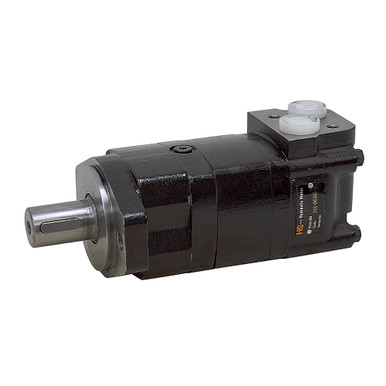

4.88 cu in Hydraulic Motor Hydro Custom BM5A-AACBDCD

Description

4.88 cu in Hydraulic Motor Hydro Custom BM5A-AACBDCD
Brand new Hydro Custom BM5 hydraulic motor. Gerolor power element. Interchangeable with Char-Lynn 2000 series motors. Double tapered roller bearings permit high radial loads.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM5A-AACBDCD
• Manufacturer Part Number CUM 351-0631
• Displacement 4.88 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    2980 PSI cont.
    4350 PSI int.
• Torque
    2033 in-lbs. cont.
    2555 in-lbs. int.
• Speed
    799 RPM cont.
    908 RPM int.
• Flow
    20 GPM cont.
    22 GPM int.
• Mount SAE A 2 Bolt
• Shaft 1.25″ x 1.811″ long w/ 5/16″ woodruff key, end tapped 3/8″-16
• Ports SAE 10
• Case Drain SAE 4
• Size 10.309″ x 3.74″ x 5.118″
• Shpg. 25 lbs.
