Description

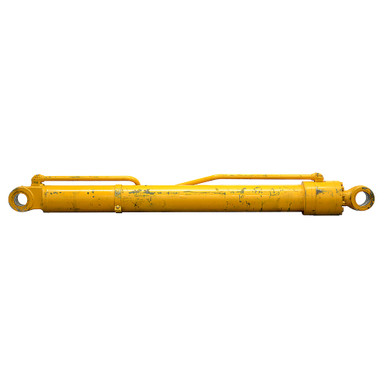

4.921″ (125mm) x 51.625″ x 3.346″ (85mm) DA HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “E131-02P2 L.H.” written on cylinder barrel.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke125mm (4.921″) x 51-5/8″
- Barrel Thickness11mm (0.433″)
- Pressure 3000 PSI max.
- Rod Dia. 85mm (3.346″)
|
- Ports 3/4″ Four-Bolt Flange, Code 61
- Retracted Length 72″
- Shpg. 490 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Max Thickness 3-3/4″
- Pin Center to Tang End 2-3/4″
- Pin Hole 80mm (3.149″)
|
- Base End Tang
- Max Thickness 3-15/16″
- Pin Center to Tang End 2-15/16″
- Pin Hole 70mm (2.756″)
|
