Description

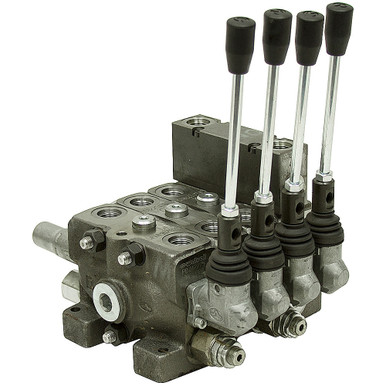

4 SPOOL HYDRAULIC CONTROL VALVE
New. WALVOIL Model SDS100 four spool valve. Features two individual inlets with first inlet directing oil to spools one and two. Second inlet directing oil to spools three and four. Common outlet. Individual adjustable main line reliefs for each circuit. Load checks on spools one, two and three. Double pilot operated check valves on fourth spool work ports. Ideal for double pumps or dual hydraulic circuit systems for use with a common control valve.
SPECIFICATIONS
- Brand Walvoil
- Model Number SDS100
- Open Center
- Spools Four
- Flow 16 GPM
- Pressure 4600 PSI
- Relief Valves Adjustable from 1500 to 3000 PSI set at 1500 PSI
- In Ports SAE 8
- Out Port SAE 12
- Work Ports SAE 8
- Size 10″ x 7.6875″ x 6.25″
- Shpg. 44 lbs.
Spool Details:
Spool 1 Motor spool spring center spool out, detent spool in
Spool 2 Double acting spring centered
Spool 3 Double acting friction detent
Spool 4 Double acting w/pilot checks spring centered
