Description

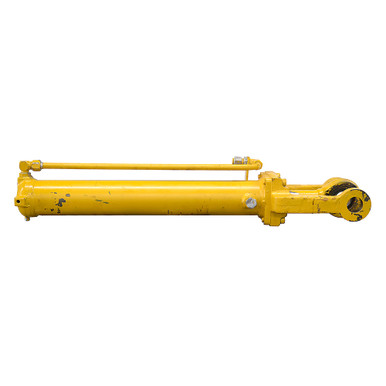

4″ x 23.625″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with bolt-on gland cap. Base end of cylinder has two 1/2″-13 x 1-1/8″ deep tapped holes for hose brackets. Retracted length measured from end to end.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 4″ x 23-5/8″
- Barrel Thickness 1/4″
- Pressure 3000 PSI max.
- Rod Dia. 2″
|
- Extend Port JIC 12 and JIC 4
- Retract Port Two SAE 12 ports
- Retracted Length 43-1/2″
- Shpg. 135 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 1-15/16″
- Pin Center to Tang End 2-9/16″
- Pin Hole 2″
|
- Trunnion Female
- Pin Outside Width 9-1/2″
- Pin Inside Width 8-3/8″
- Pin Center to Rod Pin Center Negative 1/2″
- Pin Center to Base End 41-1/2″
- Pin Diameter 2″
|
