4" x 61" x 2" Double Acting Hydraulic Cylinder Parker CJJ2HLTS33AC

4″ x 61″ x 2″ Double Acting Hydraulic Cylinder Parker CJJ2HLTS33AC

Original price was: $449.95.Current price is: $89.99.

SKU: 904634 Category:

Description

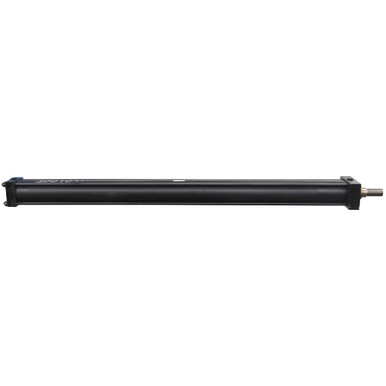

4″ x 61″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. PARKER numbers on cylinder CJJ2HLTS33AC.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke  4″ x 61″
  • Barrel Thickness 0.312″
  • Gland Retainer 4-Hole (Tie-Rod Cylinder)
  • Pressure 3000 PSI
  • Rod Dia. 2″
  • Ports  SAE 12
  • Retracted Length 73.125″ (From Base End to Rod Thread End)
  • Gland Face to Rod Pin Center 4.25″ (To Rod Thread End)
  • Shpg. 234 lbs.
END MOUNTINGS
  • Rod End Threaded
  • Thread Size-Pitch   1-1/2″ -12 TPI
  • Threaded Length   3-1/4″
  • Flat  At Rod End 2″ Gland Plate    7-5/8″ x 5″ w/ Four .69″ Bolt Holes on 6-3/8″ x 3-7/8″ Bolt Centers
