Description

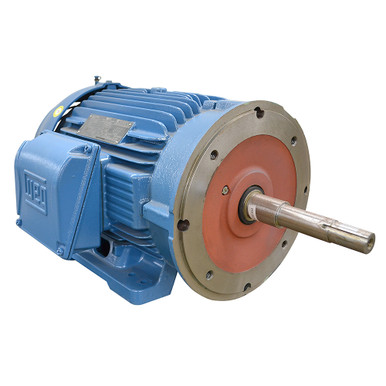

40 HP 3530 RPM 575 VOLT AC WEG ELECTRIC MOTOR
New, WEG model TE1BF0X0H.
SPECIFICATIONS
- Brand Weg
- Model NumberTE1BF0X0H
- Power 40 HP
- Voltage 575 Volt AC
- Phase 3
- Frequency 60 Hz
- Amperage 36.5 Amps
- Speed 3530 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection None
- Enclosure TEFC
- Duty Continuous
- Frame 284JP
- Face Mount
- Shaft 1-3/8″ x 3-1/2″ stepped down to 1-1/4″ x 2-1/4″ keyed. 5-3/4″ usable shaft, 8-1/4″ overall.
- Size 31.5″ x 17.625″ x 14.5″
- Shpg. 486 lbs.
