Description

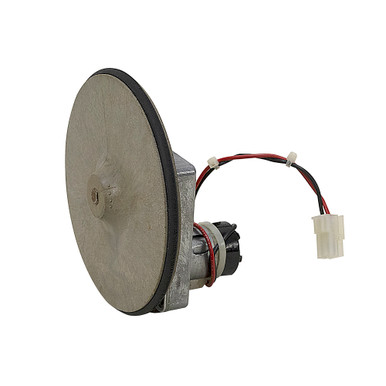

45 RPM 24 VDC INLINE GEARMOTOR
New, Molon model CHM-2435-1. High torque output. 4-7/8″ wheel with o-ring on edge to friction drive equipment. Use for drive wheel on robots. Operates at 1/2 speed on 12 VDC. Permanent magnet motor.
SPECIFICATIONS
- Speed 45 RPM
- Voltage 24 DC
- Amperage 0.28 Amps
- Torque 7.5 in-lbs.
- Rotation Reversible
- Duty Continuous
- Mount 4 tapped holes 2-3/8″ x 2-1/2″
- Shaft 5/16″ dia.
- Size 2-3/4″ x 2-1/4″ x 3″
- Shpg. 1-1/2 lbs.
