Description

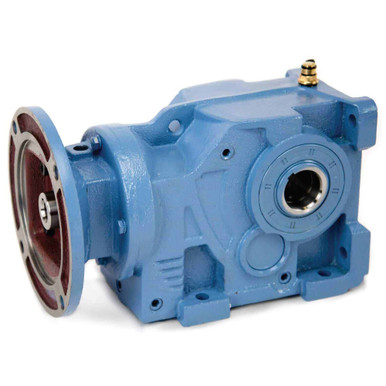

47.16:1 Size 97 18.78 HP Helical Bevel Gear Reducer WWE KHN97-50/1-H-254/6TC
Brand new, World Wide Electric helical bevel gear reducer.Cast iron housing.Gearbox flanges are designed to accept NEMA C-Face electric motors.Foot mounts for horizontal or vertical mounting, hollow output bore.Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation.Pre-filled with HD320 mineral oil.Single shaft and double shaft output kits available (sold separately).
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN97-50/1-H-254/6TC
- Box Size 97
- Gear Stages 3
- Nominal Ratio 50:1
- Actual Ratio 47.16:1
- Output RPM @ 1750 RPM Input 37 RPM
- Input HP 18.78 HP max.
- Output Torque 28910 in.-lbs. max.
- Over-Hung Load 5460 lbs. max.
- Motor Mount 254/6TC
- Output Bore 2-3/4″ Hollow Keyed, 5/8″ Keyway
- Horizontal Foot Mount Four 1.02″ holes on 9.45″ x 9.45″ centers
- Vertical Foot Mount Four 1.02″ holes on 9.45″ x 11.61″ centers
- Cross Reference SEW K97
- Size 22.81″ x 11.81″ x 16.42″
- Shpg. 399 lbs.
