Description

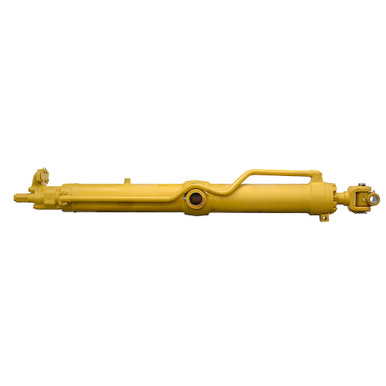

5.5″ x 46.5″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Clevis with opposing crosstube. Model 73118801
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5″ x 46.5″
- Barrel Thickness 0.25″
- Gland Retainer Externally Threaded Gland Cap w/ Bolt On Wiper
- Pressure 3000 PSI max.
- Rod Dia. 2.5″
|
- Ports 4 Bolt 1″ Code 61 Flange Size 16
- Retracted Length 36″ Trunnion
- Shpg. 348 lbs.
|
| END MOUNTINGS |
- Rod End Cross-Tube
- O.D. 2.962″
- Width 3.895″
- Pin Hole 1-1/2″
|
- Base End Female Trunnion
- Pin Outside/Inside Width 10.313″ / 6.063 “
- Pin-Center-To-Rod Pin Center 36″
- Pin Center To Base End 38″
- Pin Diamter 2.525 “
|
