5.5"(140mm) x 57.5"(1461mm) x 3.93"(100mm) Double Acting Hydraulic Cylinder JSW HO752189UA

5.5″(140mm) x 57.5″(1461mm) x 3.93″(100mm) Double Acting Hydraulic Cylinder JSW HO752189UA

Original price was: $849.95.Current price is: $169.99.

SKU: 904590 Category:

Description

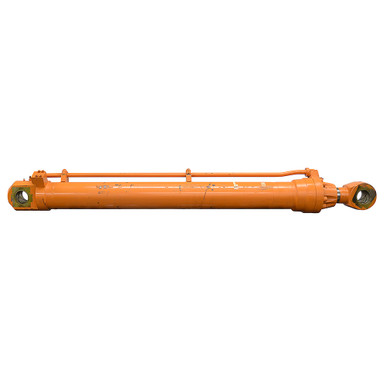

5.5″(140mm) x 57.5″(1461mm) x 3.93″(100mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. JSW numbers on cylinder HO752189UA.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5″(140mm) x 57.5″(1461mm)
  • Barrel Thickness 0.577″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.93″(100mm)
  • Ports 4 bolt 3/4″ code 61 flange size 12
  • Retracted Length 82.5″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 725 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.71″
  • Pin-Center-To-Tang-End 3.30″
  • Pin Hole 3.15″(80mm)
  • Base End Tang
  • Width 4.71″
  • Pin-Center-To-Tang-End 3.54″
  • Pin Hole 3.15″(80mm)
