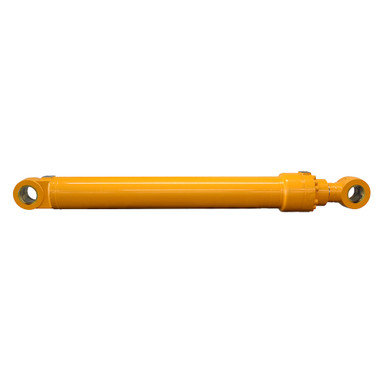

5.906"(150mm) x 45.5"(1155mm) x 4.308"(110mm) Double Acting Hydraulic Cylinder Hyundai

5.906″(150mm) x 45.5″(1155mm) x 4.308″(110mm) Double Acting Hydraulic Cylinder Hyundai

Original price was: $799.95.Current price is: $159.99.

SKU: 905785 Category:

Description

5.906″(150mm) x 45.5″(1155mm) x 4.308″(110mm) HYD CYL
Unused old inventory. HYUNDAI, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.906″(150mm) x 45.5″(1155mm)
  • Gland Retainer Bolt-on
  • Pressure 2500 PSI max.
  • Rod Dia. 4.308″(110mm)
  • Rod Thickness 4.308″(110mm)
  • Extend Port CODE 61 FLANGE 16
  • Retract Port CODE 62 FLANGE 16
  • Retracted Length 69.75″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 634 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 4.563″
  • Pin-Center-To-Tang-End 3.395″
  • Pin Hole 3.543″(90mm)
  • Base End Tang
  • Width 4.568″
  • Pin-Center-To-Tang-End 3.172″
  • Pin Hole 3.543″(90mm)
