Description

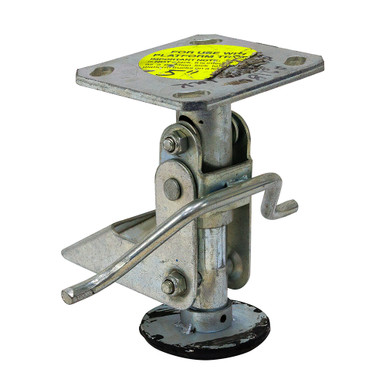

5″ FLOOR LOCK
Old unused inventory, floor lock for use with plate caster with 5″ diameter wheel. 3″ diameter rubber disc on base is skid resistant. Floor locks provide a foot activated braking option for equipment or carts with casters of similar heights. Spring loaded foot pedal is depressed to extend the rubber pad into a locked position to create a forceful resistance with the floor to immobilize the equipment. Releasing the lock allows the equipment to roll freely on the casters. Floor locks are not designed to be a jack and do not lift or directly support weight.
SPECIFICATIONS
- Extended Height 6-3/4″
- Retracted Height 5-3/4″
- Correlating Caster Wheel Size 5″
- Top Plate 4″ x 4-5/8″
- Foot Pad 3″ dia.
- Mount Four slotted holes from 3-5/8″ x 2-5/8″ to 3″ x 3″ centers
- Size 7.75″ x 7″ x 5.75″
- Shpg 5 lbs.
