Description

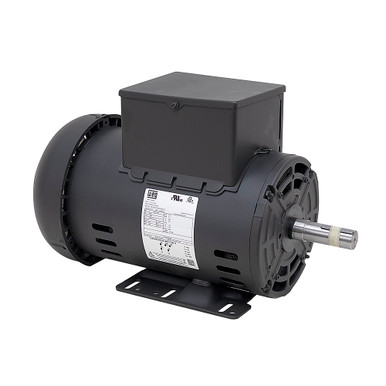

5 HP 3440 RPM 230 VOLTS AC COMPRESSOR DUTY MOTOR
New, Weg model 00536OS1DCD56HZ-S capacitor-start, capacitor-run motor. Special Duty motor designed to replace motors on compressors. High torque design for compressor duty applications. Thermal overload protection with manual reset. Steel frame and base.
SPECIFICATIONS
- Brand Weg
- Model Number 00536OS1DCD56HZ-S
- Part Number EM0.5.0-36-10
- Power 5 HP Definite Purpose Special Compressor Duty
- Voltage 230 Volts AC
- Phase 1
- Frequency 60 Hz
- Amperage 20.3 Amps
- Speed 3440 RPM
- Rotation Reversible
- Service Factor 1.00
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure ODP
- Duty Continuous
- Frame 56HZ
- Base Mount Six 1-1/8″ x 5/16″ elliptical slots on 2″, 5″ x 5″ centers
- Shaft 7/8″ dia. x 2-7/8″ overall length w/ 3/16″ wide x 1-3/8″ long keyway
- Size 15.5″ x 7.5″ x 9.625″
- Shpg. 53 lbs.
