Description

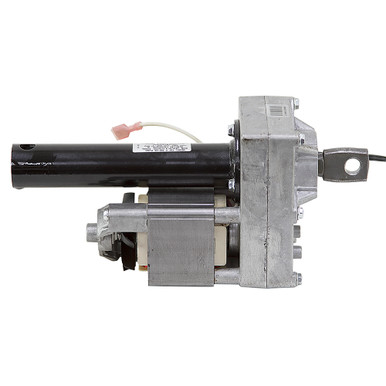

5″ STROKE LINEAR ACTUATOR
New, ICON HEALTH & FITNESS model 353904 linear actuator. Power extend and power retract, rated to push up to 900 pounds, retract under no load. Hall effect sensor connected to internal gearing.
SPECIFICATIONS
- Brand Icon Health & Fitness
- Model Number 353904
- Voltage 120 Volt AC, 60 Hz
- Amperage 1.55 Amps
- Capacity Rated to push 900 lb.
- Thread 3/4″-6 Acme thread
- Stroke 5″
- Extension Speed 0.085″ / sec. (no load)
- Extension Time 59 seconds to Full Stroke, No Load
- Limit Switches No limit switches
- Direction Reversible
- Duty Intermittent
- Retracted length 8-7/16″
- Rod end pin hole 3/8″
- Base end pin hole 3/8″
- Size 9-1/4″ x 4-1/4″ x 3-1/8″
- Shpg. 6 lbs.
