5" x 20.625" x 2.5" Double Acting Hydraulic Cylinder Bailey 320-868

5″ x 20.625″ x 2.5″ Double Acting Hydraulic Cylinder Bailey 320-868

Original price was: $429.95.Current price is: $85.99.

SKU: 906458 Category:

Description

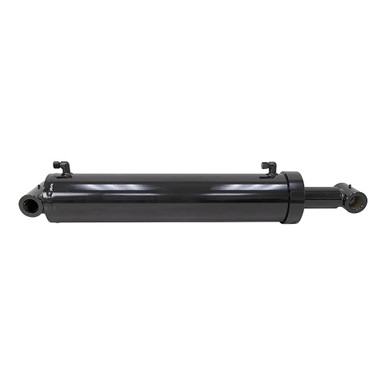

5″ x 20.625″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 320-868, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 20.625″
  • Gland Retainer Externally threaded
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5″
  • Ports JIC 6
  • Retracted Length 34.875″
  • Gland Face to Rod Pin Center 6″
  • Shpg. 148 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.5″
  • Width 4″
  • Pin Hole 1.5″
  • Base End Cross-Tube
  • O.D. 2.5″
  • Width 5.75″
  • Pin Hole 1.5″
