Sale!
5" x 51.75" x 2" Double Acting Hydraulic Cylinder Bailey 323050

5″ x 51.75″ x 2″ Double Acting Hydraulic Cylinder Bailey 323050

Original price was: $599.95.Current price is: $119.99.

SKU: 906462 Category:

Description

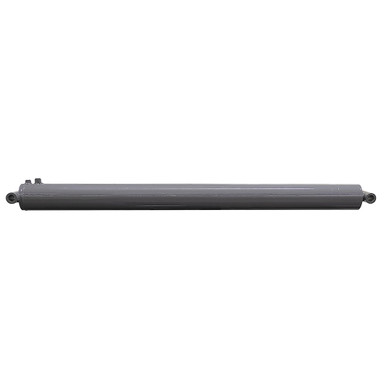

5″ x 51.75″ x 2″ DOUBLE ACTING HYDRAULIC CYLINDER
New, Bailey 323-050, welded, double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 51.75″
  • Gland Retainer Threaded in
  • Pressure 3000 PSI max.
  • Rod Dia. 2″
  • Ports SAE 8
  • Retracted Length 73.25″
  • Gland Face to Rod Pin Center 1.88″
  • Shpg. 226 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.25″
  • Width 4.75″
  • Pin Hole 1.25″
  • Base End Cross-Tube
  • O.D. 2.25″
  • Width 6.875″
  • Pin Hole 1.25″
