50 GPM Oil Cooler w/12 Volt DC Fan and Internal Bypass AKG DCS16-12-BP65

Description

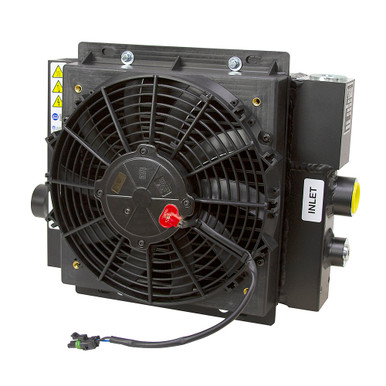

50 GPM AKG DCS16-12-BP65 Oil Cooler w/12 Volt DC Fan and Internal Bypass
Brand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections, with internal pressure bypass and mounting tabs.

SPECIFICATIONS

• Manufacturer AKG
• Model Number DCS16-12-BP65
• AKG Item  1103650000
• Pressure 260 PSI max.
• Temperature 260 F° max.
• Construction Aluminum
• Flow 50 GPM
• Fan Motor Voltage 12 Volts DC
• Amps 10
• Heat Removed Based On 50 F°
  Entering Temperature Difference (BTU/HR) 17058
• Airflow Direction Pull
• Port Size SAE 16
• Drain/Temperature Sensor Port Size SAE 8
• Mount Four 1/2″ slotted holes on 5.87″ x 12.68″ centers
• Overall Depth (in.) 6.5
• Overall Width (in.) 15.74
• Overall Height (in.) 13.5
• Shpg. 30 lbs.
