Description

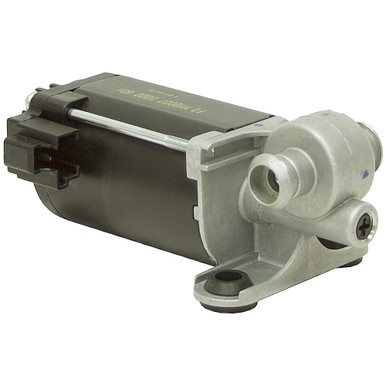

500 RPM 12 VDC GEARMOTOR
New,permanent magnet, right angle, worm gear reduction gearmotor. Built for seat back adjustment in vehicles. Cast aluminum gear housingwith steel motor frame.Hollow square thru-drive output shaft. Two bolt rubber isolation mount. Two pin male integral Packard power connection.
SPECIFICATIONS
- Speed 500 RPM no load
- Speed 220 RPM at rated torque
- Voltage12 DC
- Amperage22 Amps at rated torque
- Torque16 in-lbs
- RotationReversible
- Duty Intermittent
- EnclosureTENV
- Mount 3/8″ dia. two bolton 2.2″centers
- Hollow Thru-shaft 5/32″ (4 mm)
- Size 5-1/2″ x 3-1/8″ x 2-1/2″
- Shpg. 3lbs.
