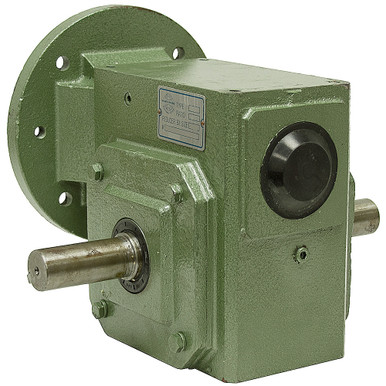

5:1 Right Angle Cast Iron Worm Gear Reducer 4.9 HP 182TC Dual Output Worldwide R262-5:1-182TC-4.9DE

Description

5:1 GEAR REDUCER
New, WORLDWIDE ELECTRIC cast iron right-angle worm gear-reducer. Dual output shaft..Tapped mounting holes on top and bottom of case.Mounting base supplied.

SPECIFICATIONS

• 5:1 gear ratio
• 4.9 HP input
• 1750 RPM input
• 350 RPM output
• 915 in-lbs output torque
• 2.94″ Output centerline height
• Motor mount: 182TC
• 1-1/8″ dia. keyed hollow input
• 1-1/8″ diam. x 2-1/2″ keyed dual output shaft
• 3.38″x 6.38″ mgt bolt pattern
• Overall size 9-3/4″ x 9″ x 10″
• Shpg 56 lbs
