Description

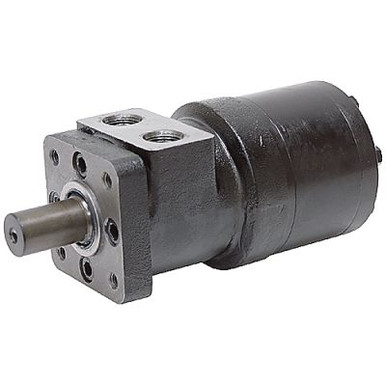

6.22 cu in DYNAMIC BMRS100H4KS HYDRAULIC MOTOR
Brand new. DYNAMIC BMRS series hydraulic motors. Gerolor power element. Interchangeable with the following motor lines: CHAR-LYNN S, DANFOSS DS, WHITE RS, PARKER – ROSS MG/TB.
SPECIFICATIONS
- Brand Dynamic
- Model 61303
- Build Number BMRS-100-H4-K-S
- Family BMRS
- Displacement 6.22 cu. in. / rev.
- Motor Type Gerolor
- Rotation Reversible
- Pressure:
2321 PSI cont.
2900 PSI int. - Torque:
2124 in-lbs cont.
2478 in-lbs. int. - Speed:
600 RPM cont.
750 RPM int. - Flow:
15.9 GPM cont.
19.8 GPM int. - Mount 4 bolt 3.25″ bolt circle
- Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
- Ports SAE 10
- Case Drain SAE 4
- Size 6.08″ x 3.25″ x 3.75″
- Shpg. 18 lbs.
