Description

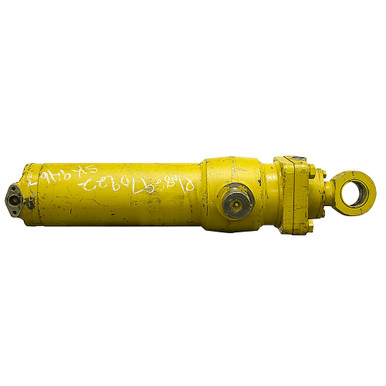

6.25″ x 24.5″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “P/N 82970922 SK9467″ stamped into cylinder barrel. Retracted length measured from end to end. Flange has two M12-1.25 x 3/4″ deep bolt holes on 2-9/16” centers.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6-1/4″ x 24-1/2″
- Barrel Thickness 3/8″
- Pressure 3000 PSI max.
- Rod Dia. 2-3/4″
|
- Ports 1-1/4″ Two Bolt Flange, Code U61
- Retracted Length 40″
- Shpg. 290 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Max Thickness 3-1/16″
- Pin Center to Tang End 2-11/16″
- Pin Hole 2-3/4″
|
- Trunnion Male
- Pin Outside Width 12-1/4″
- Pin Inside Width 8-5/16″
- Pin Center to Rod Pin Center 14-3/4″
- Pin Center to Base End 24-1/4″
- Pin Diameter 2-3/4″
|
