Description

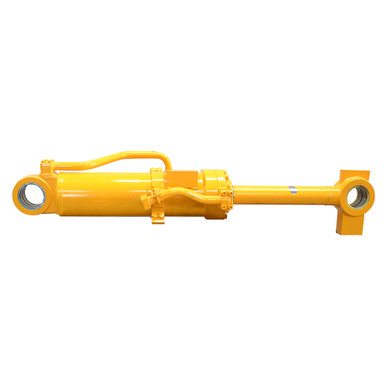

6.29″(160mm) x 18.75″(476mm) x 3.15″(80mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. HYUNDAI double acting hydraulic cylinder. Numbers on cylinder 31LD-20430.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.29″(160mm) x 18.75″(476mm)
- Barrel Thickness 0.375″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.15″(80mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length 52.75″
- Gland Face to Rod Pin Center 21.25″
- Shpg. 339 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.53″
- Pin-Center-To-Tang-End 3.11″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 3.54″
- Pin-Center-To-Tang-End 3.07
- Pin Hole 3.74″(95mm)
|
