Description
6.298″(160mm) x 22.813″(580mm) x 3.151″(80mm) HYD CYL

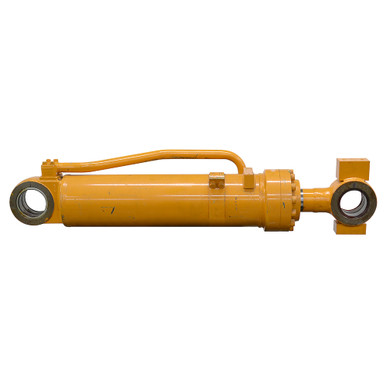

Unused old inventory. HYUNDAI 31L6-00082, welded, double acting hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6.298″(160mm) x 22.813″(580mm)
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 3.151″(80mm)
- Rod Thickness 3.151″(80mm)
|
- Ports CODE 61 FLANGE 16
- Retracted Length 42.5″
- Gland Face to Rod Pin Center 7″
- Shpg. 330 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.533″
- Pin-Center-To-Tang-End 3.17″
- Pin Hole 3.545″(90mm)
|
- Base End Tang
- Width 3.554″
- Pin-Center-To-Tang-End 3.182″
- Pin Hole 3.742″(95mm)
|
