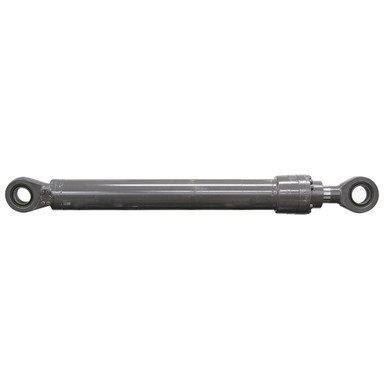

6.3"(160mm) x 50.375"(1280mm) x 4.33"(110mm) Double Acting Hydraulic Cylinder Volvo 14342395-01

6.3″(160mm) x 50.375″(1280mm) x 4.33″(110mm) Double Acting Hydraulic Cylinder Volvo 14342395-01

Original price was: $949.95.Current price is: $189.99.

SKU: 904865 Category:

Description

6.3″(160mm) x 50.375″(1280mm) x 4.33″(110mm) DA HYD CYL
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 14342395-01.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.3″ x 50.375″
  • Barrel Thickness 0.651″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 4.33″(110mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length81.25″
  • Gland Face to Rod Pin Center 9.5″
  • Shpg. 795 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.95″
  • Pin-Center-To-Swivel Eye-End 4.34″
  • Swivel Eye Width 2.75″
  • Pin Hole 3.94″(100mm)
  • Base End Swivel Eye
  • Width 2.99″
  • Pin-Center-To-Swivel Eye-End 4.35″
  • Swivel Eye Width 2.75″
  • Pin Hole 3.94″(100mm)
