Description

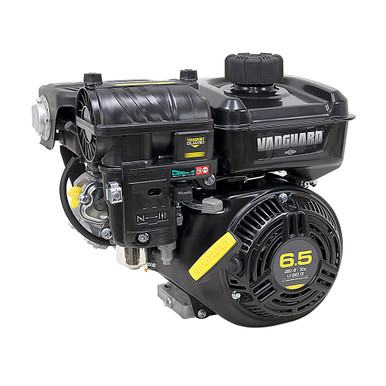

6.5 HP HORIZONTAL SHAFT BRIGGS & STRATTON VANGUARD SERIES 200 RECOIL START ENGINE
New. Briggs & Stratton Vanguard Series 200 horizontal shaft engine. Features overhead valve, manual throttle and choke, muffler and integrated cyclonic air cleaner.
SPECIFICATIONS
- Brand Briggs & Stratton
- Model 12V3320012F1DV1001
- Engine Family Vanguard 200 Series
- Power 6.5 HP
- Bore/Stroke 68mm/56mm
- Disp. 203 cc
- Speed 3600 RPM
- Start Recoil
- Fuel Tank Yes
- Shaft 3/4″ dia. x 2-27/64″ long, tapped 5/16″-24 TPI
- Base Mount Four hole on 3-1/8″ x 6-3/8″ centers
- Accessory Mount 4 bolt on 3-5/8″ B.C.
- Size 14.8″ x 14.2″ x 11.4″
- Shpg 50 lbs.
