Description

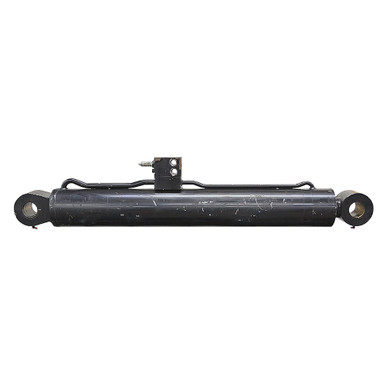

6″ x 42″ x 3.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. JLG Industries T110228DL4, welded, double acting hydraulic cylinder. Two adjustable cartridge valves.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 42″
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 3.5″
|
- Ports SAE 12
- Retracted Length 58.5″
- Gland Face to Rod Pin Center 4″
- Shpg. 460 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 5.016″
- Pin-Center-To-Tang-End 2.994″
- Pin Hole 2.75″
|
- Base End Tang
- Width 5.029″
- Pin-Center-To-Tang-End 2.96″
- Pin Hole 2.75″
|
