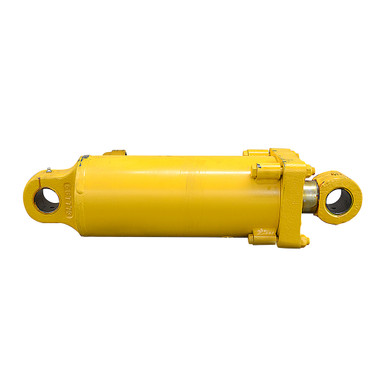

6″ x 9.5″ x 2.75″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Volvo Construction M1503607, welded, double acting, hydraulic cylinder.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 9.5″
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 2.75″
|
- Ports 1″ NPT
- Retracted Length 23.75″
- Gland Face to Rod Pin Center 3.5″
- Shpg. 135 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.928″
- Pin-Center-To-Tang-End 1.952″
- Pin Hole 2″
|
- Base End Tang
- Width 2.738″
- Pin-Center-To-Tang-End 2.036″
- Pin Hole 2″
|
