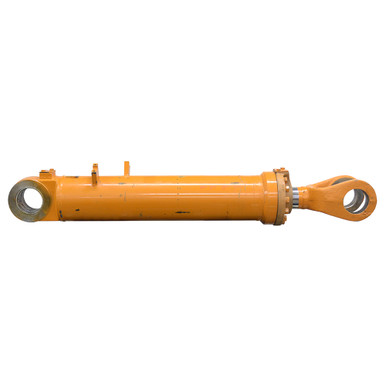

7.06"(180mm) x 30.75"(781mm) x 3.93"(100mm) Double Acting Hydraulic Cylinder Samsung 2046-01042

7.06″(180mm) x 30.75″(781mm) x 3.93″(100mm) Double Acting Hydraulic Cylinder Samsung 2046-01042

Original price was: $649.95.Current price is: $129.99.

SKU: 904640 Category:

Description

7.06″(180mm) x 30.75″(781mm) x 3.93″(100mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. SAMSUNG numbers on cylinder 2046-01042.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke7.06″(180mm) x 30.75″(781mm)
  • Barrel Thickness 0.481″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia.3.93″(100mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length55.875″
  • Gland Face to Rod Pin Center 10.5″
  • Shpg. 494 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 8.31″
  • Inside Width 4.5″
  • Throat Depth 9.25″
  • Pin Hole 4.33″(110mm)
  • Base End Tang
  • Width 4.7″
  • Pin-Center-To-Tang-End 3.91″
  • Pin Hole 4.33″(110mm)
