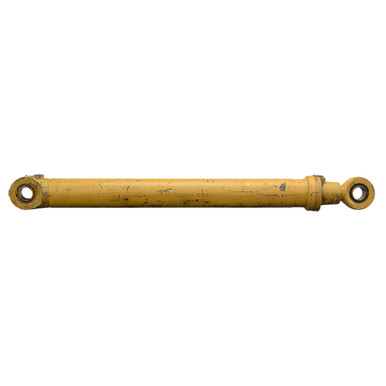

7.07"(140mm) x 74.75"(1898.7mm) x 4.71"(120mm) Double Acting Hydraulic Cylinder 2V00016 71309546

7.07″(140mm) x 74.75″(1898.7mm) x 4.71″(120mm) Double Acting Hydraulic Cylinder 2V00016 71309546

Original price was: $1,449.95.Current price is: $289.99.

SKU: 904376 Category:

Description

7.07″(180mm) x 74.75″(1898.7mm) x 4.7″(120mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 2V00016 71309546

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7.07″(180mm) x 74.75″(1898.7mm)
  • Barrel Thickness 0.963″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.7″(120mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 102.75″
  • Gland Face to Rod Pin Center 6″
  • Shpg. 1355 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Thickness, Max 3.10″
  • Pin-Center-To-Swivel Eye-End 5.09″
  • Swivel Eye Width 3.39″
  • Pin Hole 4″
  • Base End Swivel Eye
  • Thickness, Max 3.18″
  • Pin-Center-To-Swivel Eye-End 5.15″
  • Swivel Eye Width 3.35″
  • Pin Hole 4″
