Description

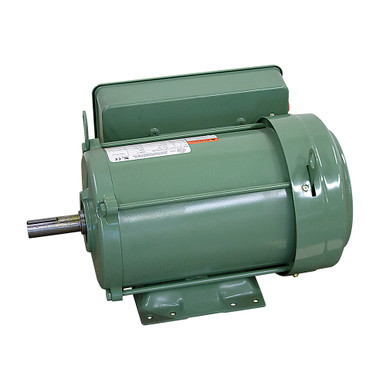

7.5 HP 1767 RPM 208-230 VOLT AC BASE MOUNT MOTOR
Brand new, WORLDWIDE FD7.5-18-215TZ, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.
SPECIFICATIONS
- Power 7.5 HP
- Voltage 208-230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 31.5/28.7 Amps
- Speed 1767 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure TEFC
- Duty Continuous
- Frame 215TZ
- Base Mount Eight 3/8″ holes on 1-1/2″ to 5-1/2″ to 7″ x 8-1/2″ centers
- Shaft 1-1/8″ dia. x 3-1/2″ overall length w/ 1/4″ wide x 1-3/4″ long keyway
- Size 20″ x 14″ x 11.5″
- Shpg. 183 lbs.
