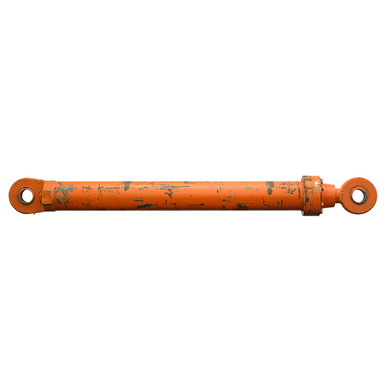

7.5"x69.75"x4.5" Double Acting Hydraulic Cylinder Nordick 1120

7.5″x69.75″x4.5″ Double Acting Hydraulic Cylinder Nordick 1120

Original price was: $1,549.95.Current price is: $309.99.

SKU: 904053 Category:

Description

7.5″ x 69.75″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
New, NORDICK model 1120 welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7-1/2″ x 69-3/4″
  • Barrel Thickness 3/4″
  • Pressure 3000 PSI max.
  • Rod Dia. 4-1/2″
  • Ports 1-1/4″ Four-Bolt Flange, Code 62
  • Retracted Length 101″
  • Shpg. 1350 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 3-1/2″
  • Pin Center to Tang End 5-5/8″
  • Pin Hole 4″
  • Base End Tang w/ Swivel Eye
  • Max Thickness 3-1/2″
  • Pin Center to Tang End 5-1/2″
  • Pin Hole 4″
