7" x 51" x 4.5" Double Acting Hydraulic Cylinder Benton Harbor Engineering 4310207 84701 10 92 T4-5

7″ x 51″ x 4.5″ Double Acting Hydraulic Cylinder Benton Harbor Engineering 4310207 84701 10 92 T4-5

Original price was: $1,249.95.Current price is: $249.99.

SKU: 904375 Category:

Description

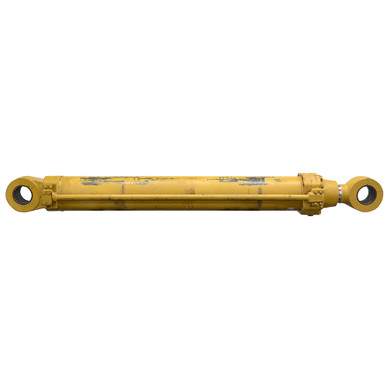

7″ x 51″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Benton Harbor Engineering numbers on cylinder 4310207 84701 10 92 T4-5

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 51″
  • Barrel Thickness 0.625″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI max.
  • Rod Dia. 4.5″
  • Ports 4 bolt 1″ code 62 flange size 16
  • Retracted Length 81″
  • Gland Face to Rod Pin Center 6.25″
  • Shpg. 955 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 5.24″
  • Pin-Center-To-Tang-End 4.1″
  • Pin Hole 4-1/4″
  • Base End Tang
  • Thickness, Max 5.24″
  • Pin-Center-To-Tang-End 4.12″
  • Pin Hole 4-1/4″
