Description

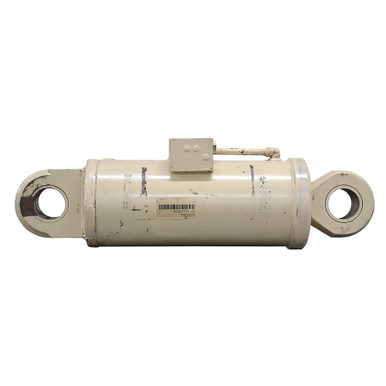

8.5″ x 14.25″ x 4.25″ HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model 23175001. Cylinder port manifold has two cartridge valve ports(valves not included), one is SUN T-2A cavity, the other is SUN T-10A cavity.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 8.5″ x 14.25″
- Gland Retainer Bolt-on
- Pressure 2500 PSI max.
- Rod Dia. 4.25″
|
- Ports SAE 12
- Retracted Length 31.75″
- Gland Face to Rod Pin Center 4″
- Shpg. 426 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang
- Width 3.5″
- Pin-Center-To-Tang-End 3.778″
- Pin Hole 3.375″
|
- Base End Tang
- Width 3.5″
- Pin-Center-To-Tang-End 3.398″
- Pin Hole 3.375″
|
