Description

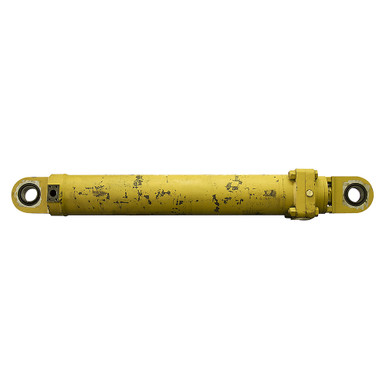

8″ x 48″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with external bolt-on gland cap. Cushion valves at both ends of cylinder. “SK 3848 6025155” stamped into cylinder barrel.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 8″ x 48″
- Barrel Thickness 1/2″
- Pressure 3000 PSI max.
- Rod Dia. 4-1/2″
|
- Ports 1-1/2″ Four-Bolt Flange, Code 61
- Retracted Length 72″
- Shpg. 830 lbs.
|
| END MOUNTINGS |
- Rod End Tang w/ Swivel Eye
- Max Thickness 3″
- Pin Center to Tang End 4-1/8″
- Pin Hole 3-1/4″
|
- Base End Tang w/ Swivel Eye
- Max Thickness 3″
- Pin Center to Tang End 4-1/8″
- Pin Hole 3-1/4″
|
