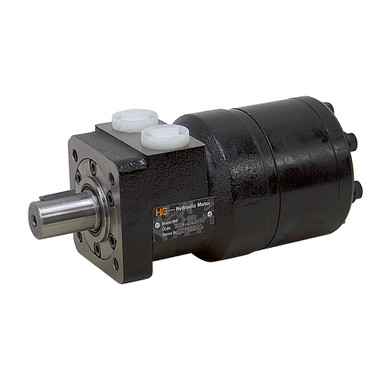

9.76 cu in Hydraulic Motor Hydro Custom BM2H-BBACADB

Description

9.76 cu in Hydraulic Motor Hydro Custom BM2H-BBACADB
Brand new Hydro Custom BM2 series motor. Gerolor power element. Interchangeable with Char-Lynn “S” series motors.
SPECIFICATIONS

• Brand Hydro Custom
• Model BM2H-BBACADB
• Manufacturer Part Number CUM 322-0404H
• Displacement 9.76 cu in
• Motor Type Gerolor
• Rotation Reversible
• Pressure
    2390 PSI cont.
    2900 PSI int.
• Torque
    2829 in-lbs. cont.
    3359 in-lbs. int.
• Speed
    375 RPM cont.
    470 RPM int.
• Flow
    15.8 GPM cont.
    20 GPM int.
• Mount 4 bolts on 3.25″ B.C.
• Shaft 1″ x 1.535″ long, w/ 1/4″ woodruff key, end tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 8.255″ x 3.622″ x 3.622″
• Shpg. 21 lbs.
