Description
FRONT/REAR DRIVE AXLE

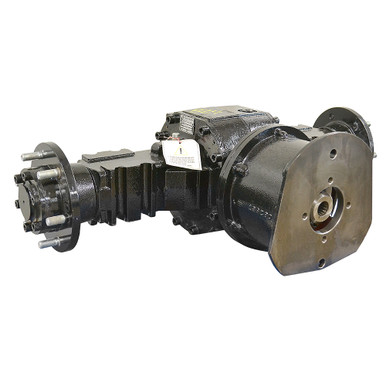

NEW COMER INDUSTRIES front and rear drive axle pair. Made for use on articulated steering off-road equipment. Both front and real axle specifications are the same except the front axle has a parking brake with lever. Ideal for building articulated steering equipment.
SPECIFICATIONS
- Brand Comer Industries
- Model 890411(front), 890412(rear)
- Output Torque 390 daNm (2876 ft-lbs)
- Static Load 4500 daN (10116 lbs)
- Dyanamic Load 2500 daN (5620 lbs)
- Gear Ratio 3.25:1
- Hollow Input 1-1/4″ dia. 14 tooth spline
- Input Mount SAE A w/ Four M12x1.75 tapped holes
- Wheel Hub Width 750mm (29.53″)
- Wheel Hub Mount Six M14x1.5 bolts on 6″ bolt circle
- Wheel Hub Pilot 4.62″
- Axle Mounting Pad Centers 530mm(20.87″) to 430mm(16.93″) centers
- Size 33″ x 17.375″ x 10″
- Shpg. 488 lbs.
