Description

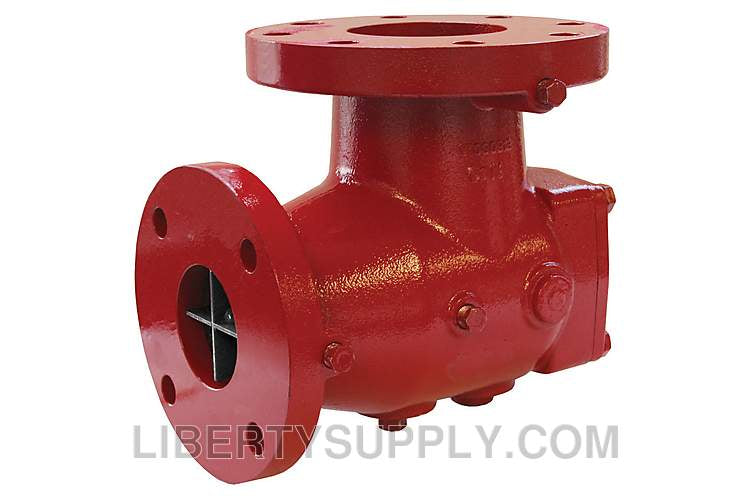

4″ flanged (system side) x 4″ flanged (pump side) EE-3 suction diffuser with a cast iron body, 175 psi maximum working pressure, 250ºF maximum operating temperature, EPDM o-ring, and 16 mesh bronze strainer. Bell & Gossett suction diffusers are angle-pattern fittings that optimize system performance. The patented Flow Cone eliminates recirculation zones by directing flow toward the pump, which reduces uneven stress on the impeller and shaft.
