Description
Adjustable models for liquid

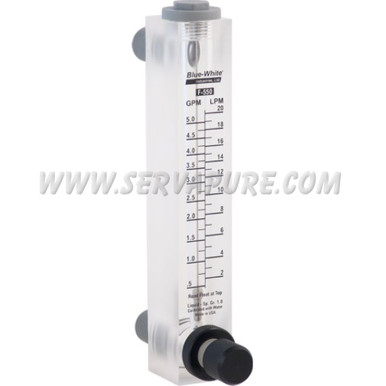

F-550N Features
– Durable, highly polished, one piece meter body
– 316 stainless steel floats and float guides
– Bulkhead nuts attach directly to the inside panel
– Separate mounting screws are not required
– Acceptable for direct sunlight applications
– White back reflector for easy reading
F-550N Specifications
| Adapter size | 3/4″ MNPT |
| Low Flow Reading | 1 GPM (4 LPM) |
| High Flow Reading |
10 GPM (40 LPM) |
| Adapter Material |
Polypropylene |
| Float Material |
316 SS (optional Hastelloy) |
| Max Working Pressure |
250 psi/17.2 bar @ 70° F/21° C |
| Max Fluid Temperature |
200°F/93° C @ 0 psi |
| Full Scale Accuracy |
±5% |
| O-Ring Seals |
Viton (optional EP) |
| Metered Body |
Machined Acrylic |
| Approx. Ship Weight |
2 lb. |
| Dimensions | 7-1/4″ x 2-1/2″ |
* NIST certificates optional
