Description

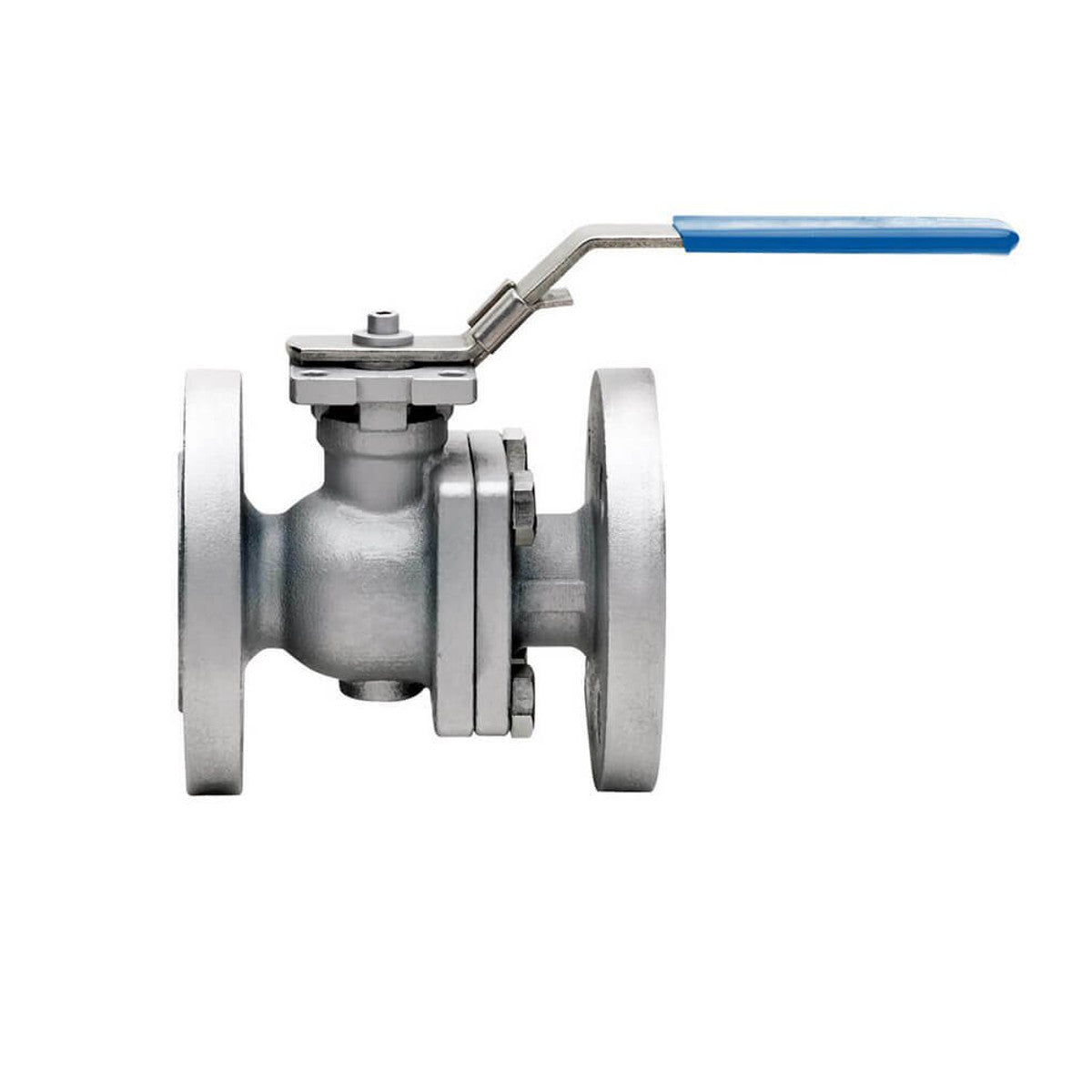

Bonomi 766000 Firesafe Stainless Steel Full Port Ball Valve, ANSI 150 Flange, Split Body, Direct Mount
Manually open and close these valves to start and stop flow.
304 stainless steel valves are more corrosion resistant than cast iron or steel valves.
Full-port valves do not restrict flow.
Bonomi 766000 Datasheet
Features:
- Stainless steel, ANSI class 150 flanged ends ball valve
- Direct mount ISO 5211
- Locking handle standard
- Full port, sizes 1” to 4”
- Temperature range -4° F to 366° F
- Blow out proof stem, adjustable stem packing
- P.T.F.E. seats, packing and thrust washer
- FIRE SAFE certified to API 607 6th edition
- 100% tested
- ANSI B16.5, B16.10, B16.34. design
- Antistatic device
