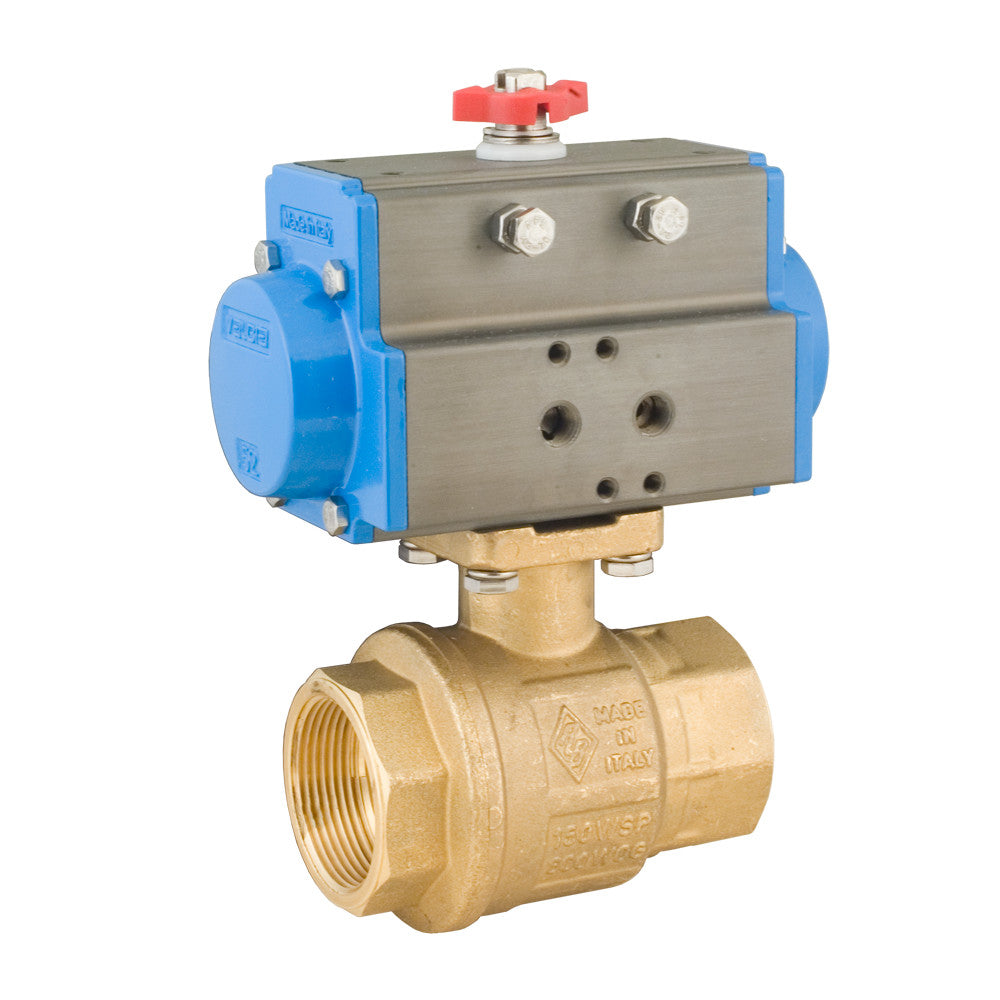

BONOMI 8P0082LF NPT BRASS BALL VALVE WITH SPRING RETURN PNEUMATIC ACTUATOR – DIRECT MOUNT, 2-WAY, FULL PORT
The Bonomi 8P0082LF ball valve is available in 11 sizes ranging from 1/4 inch to 4 inches. The valve is built with a lead free brass body with lead free brass ball. PTFE seat material with an O-ring backing allowing for low operating torque. The valve has a full port, a blowout proof stem along with a double acting actuator.
Features:
- Pressure Rating: 600PSI WOG – 150 WSP – 1/4” to 4”
- Connection Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/2″, 3″, 4″
- Sized For: 80 PSI of available air pressure
- Fail Position: Fail Close (Options available)
- Connection Type: Threaded (FNPT x FNPT)
- Actuator: Spring Return
- Body: Lead Free Brass
- Seat: PTFE
- Ball: Chrome-Plated Brass
- Max Process Temperature: 366° F
- Stem: Brass, Blowout Proof
NOTE: These are not a stock item, they go into production when ordered, so usually there is a 1-2 week lead time.
