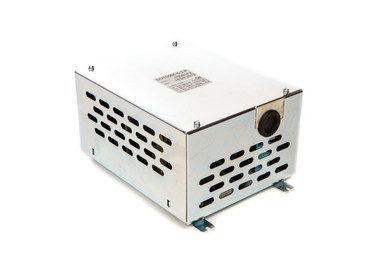

DUT-0055-6-2-P, Du/dt 55A 690V IP21

Description

DUT-0055-6-2-P
dU/dt filter for VACON NX.
Voltage: 200 V – 690 V
Continuous current: 55 A
Max output frequency: 70 Hz without derating / 320 Hz with derating
Max switching frequency fs : 3,6 kHz @ 200V – 500V, 1,5 kHz @ 525 V – 690V
Typical losses: 120 W
Degree of protection: IP21
Dimensions H x W x D: 330 x 237 x 170mm
Weight: 13,7 kg
