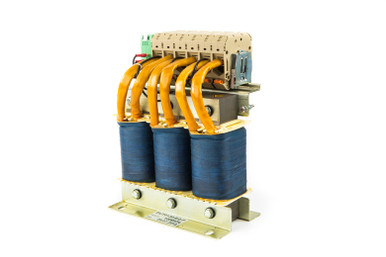

DUT-0130-6-0-P, dU/dt 130A 690V IP00

Description

DUT-0130-6-0-P
dU/dt filter for VACON NX.
Voltage: 200 V – 690 V
Continuous current: 130 A
Max output frequency: 70 Hz without derating / 320 Hz with derating
Max switching frequency fs : 3,6 kHz @ 200V – 500V, 1,5 kHz @ 525 V – 690V
Typical losses: 185 W
Degree of protection: IP00
Dimensions H x W x D: 304 x 240 x 181mm
Weight: 22 kg
