Description

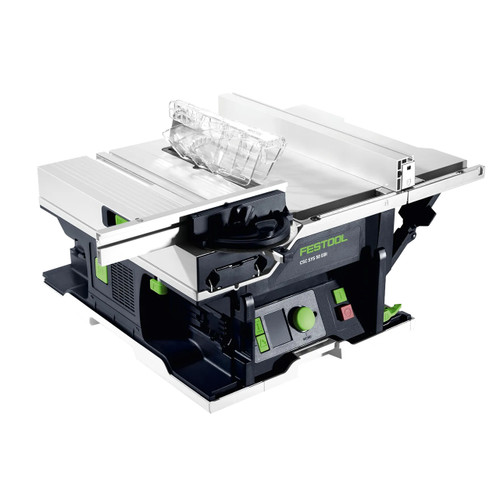

CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It’s just as versatile in use, as it is tremendously convenient in its size. Make rip cuts of up to 11″, cross-cut widths of up to 17-3/4″ and bevel cuts of -2° to 47°. The unique digital operation produces results with maximum precision, with accuracy within a tenth of a millimeter. The 2 x 18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won’t notice any difference compared with a corded table saw. Together with the UG-CSC-SYS underframe, you have the perfect worktable with built-in support for ripping and crosscutting, and it collapses for easy transport from the vehicle to the site.
- Four saw blade positions can be saved and selected via the digital display.
- Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
- The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table.
- Ball bearing-mounted slide for parallel and angled cuts with maximum precision.
- The brushless EC-TEC motor with high speeds of 6,800 rpm guarantees fast sawing.
Drive type: Battery (not included)
Battery voltage: 2 x 18V
Idle engine speed: 4,500 – 6,800 RPM
Inclination angle: -10 – +47°
Miter angle: 0 – 70°
Cutting depth 45°: 0 – 1-11/32″
Cutting height 0°: 0 – 1-7/8″
Saw blade location hole: 3/4″
Parallel cut width: 11″
Tabletop height: 11″
Cutting height -10°: 13-16″ – 1-1/4″
Dust extraction connection dia.: 1-1/16″
Size: 20-5/32″L x 15-19/32″W x 11-21/32″H
Weight 33.08 lbs.
Includes
Saw blade
Push stick
Dust bag
Blade guard and splitter
Rip fence
miter gauge
Riving knife
Hex Key
Systainer
Battery and charger, sold separately.
