Description

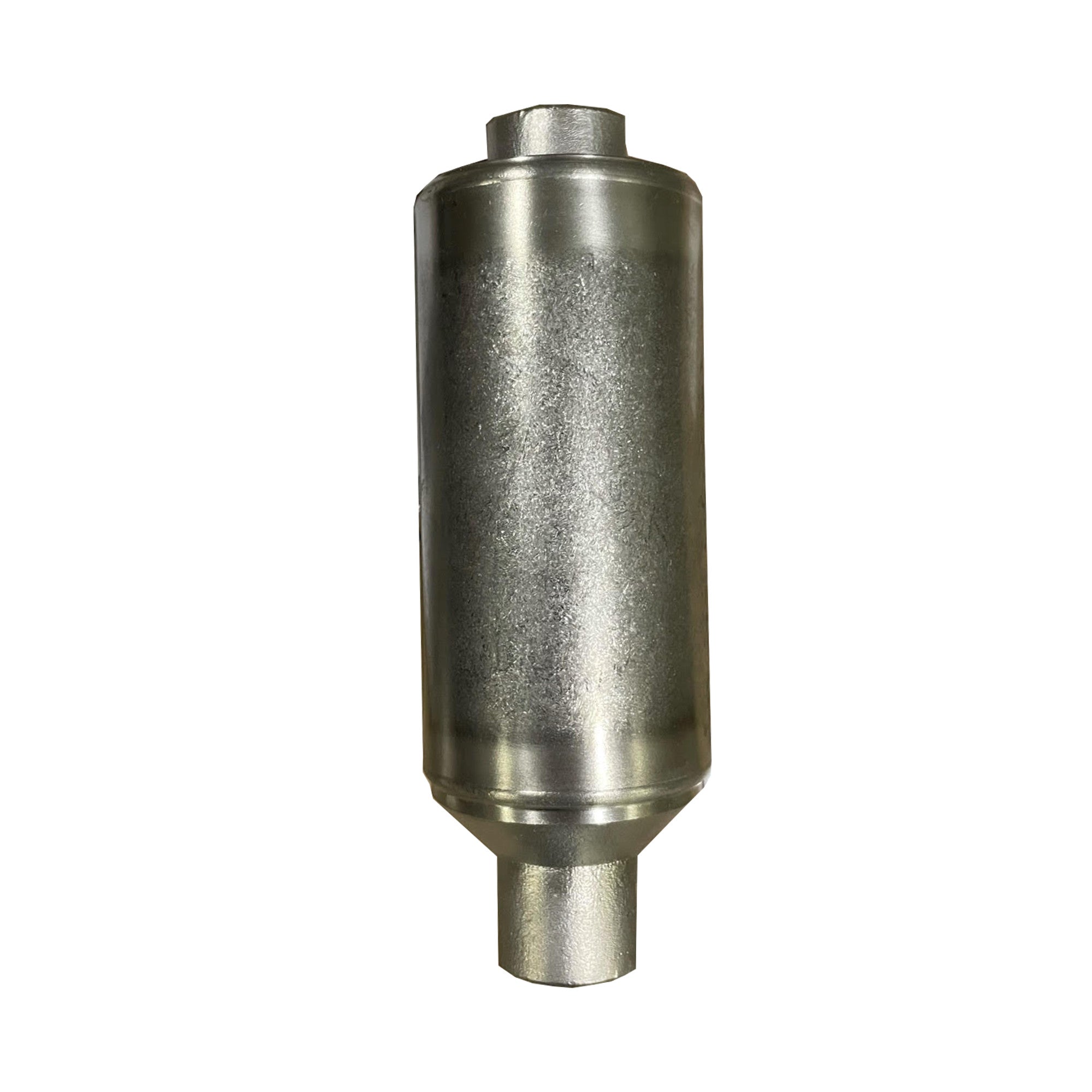

High Pressure 1/2 Inch Float Operated Compressed Air Drain Valve
Able to withstand up to 400 psi, these have the highest pressure rating of all our float-operated drain valves. Also known as drip legs, these drain valves have a float that automatically opens the drain when the bowl begins to fill. Install them at low points in your line after separators, dryers, filters, and aftercoolers
Specifications:
| Actuation | Float |
| Inlet Connection | 1/2 Inch Threaded FNPT |
| Outlet Connection | 1/2 Inch Threaded FNPT |
| Discharge Capacity | 2.2 GPM |
| Maximum Pressure | 400 psi |
| Material | Stainless Steel |
| Drain Location | Internal |
| Maximum Temperature | 500° F |
RoHS 3 (2015/863/EU) Compliant
REACH (EC 1907/2006) (01/16/2020, 205 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin: United States
USMCA Qualifying: No
