Description

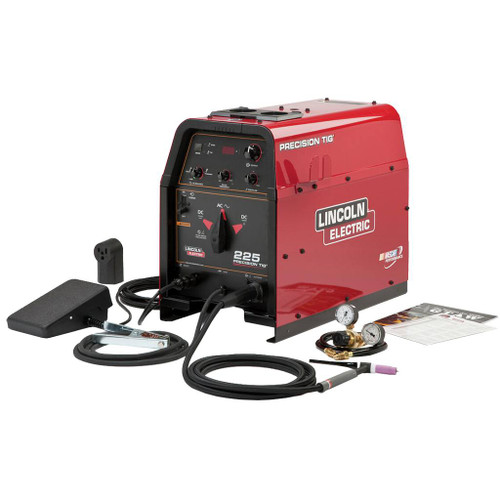

Precision welder provides power for general fabrication, automotive and vocational schools. Micro-Start™ II Technology delivers precision arc performance with extremely stable low amperage starting for welding and cratering in AC and DC welding.
- AC Auto-Balance™ and built-in simple pulse control for ease of use
- Great auxiliary power with wide output range (5-230 amps)
- Auto-Balance™ automatically sets cleaning vs. penetration levels
- Built-in TIG pulser helps control heat input in the weld
- Digital meter and simple, well-spaced controls
- 115V auxiliary power receptacles (20 amp) power water coolers and other tools
- Fan-As-Needed™ prevents overheating, reduces power use noise, motor wear and dust in the machine
- US certified
- 3-yr. mfr.’s warranty on parts and labor
208/230V, 1 Phase.
Rated output @ 100% duty cycle: 90 amps @ 23.4V.
Rated input @ rated output: 39 amps @ 42V.
Output range (AC & DC): 5-230 amps.
Unit size 20.7″H x 14.5″W x 25.6″D. Weight 212 lbs.
Includes
torch parts storage compartment
torch hanger
10′ work cable and clamp
removable lift eye
9′ input power cord
NEMA 6-50P Plug
NEMA 6-50R receptacle
12.5′ 1-piece PTA-17 pro-torch TIG
gas regulator with hose
foot Amptrol®
TIG and GTAW (TIG) manuals
Shielding gas required, sold separately.
