Description
MANUAL OVERRIDE VALVE

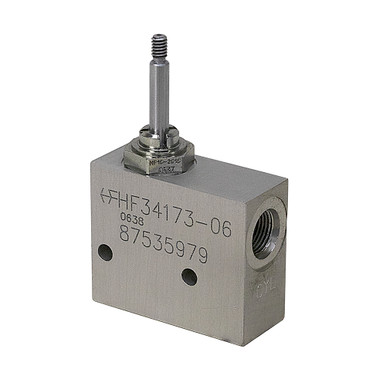

New, Hydra Force MP10-20, 2-way, manual pull to open, spring return, directional hydraulic valve. In the neutral position the valve blocks flow from ports 2 to 1 until it is manually actuated (pulled). When released the valve returns to its neutral position.
SPECIFICATIONS
- Brand Hydra Force
- Cartridge Number MP10-20
- Block Number 87553979
- Rated Pressure 3000 psi
- Flow 15 gpm
- Ports SAE 8
- Shaft Threads 1/4″-20 TPI
- Mount Two 0.285″ holes on 1-5/8″ centers
- Size 4.5″ x 2.875″ x 1.25″
- Shpg 0.95 lbs.
