Description
MCD60034BT7S1X20CV1

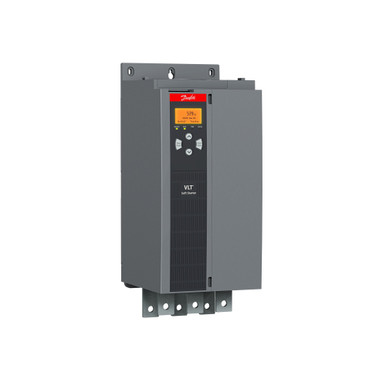

VLT® Soft Starter MCD 600
With Int. Bypass Contactor
34 A, Three phase 380-690 V AC
Frame size 1, IP20
Control Voltage: 24 VAC/VDC
Other options according to Model code
Model code:MCD60034BT7S1X20CV1
VLT® Soft Starter MCD 600 is a total motor starting solution.
Current transformers measure motor current and provide feedback for
…
| Gross weight | 4.8 Kilogram | ||
| Net weight | 4.8 Kilogram | ||
| EAN | 5710108652609 |
| Product View (Switch) | GLBL | Global (Standard) | |
| Product Group | MCD | MCD Soft Starter series | |
| MCD Series | 6 | 600 Series | |
| Current Rating | 0034 | 34 A | |
| Bypass | B | With Int. Bypass Contactor | |
| Phase | T | Three phase | |
| Mains Voltage | 7 | Three phase 380-690 V AC | |
| Enclosure | S1 | Frame size 1 | |
| Performance | X | Reserved | |
| IP Rating | 20 | IP20 | |
| Control Voltage | CV1 | 24 VAC/VDC | |
| Product Catalog | GLBL | Global (Standard) | |
| Modelcode01 | MCD60034BT7S1X20CV1 | ||
| Calculated Gross Weight [kg] | 5.4 | ||
| Calculated Net Weight [kg] | 4.8 | ||
| ECCN EU | Y901 | Y901 | |
| ECCN US | EAR99 | EAR99 | |
| Plant from Orderline | B901 | B901 | |
| Vendor | ERR01 | Cannot Determine Vendor | |
| Recommended Factory | ERR01 | Cannot Determine Vendor |
